Part Configuration

Insta-Flow Stainless Steel
Pressure Gauge

If you know all or part of the part number, enter it in this box:

Or use the dropdown boxes to configure the item

Series:
Range:
Fitting:
Case Fill:
Mount:

Logo:

SHIP TODAY (+20%) Quick Ship Info

QUICK SHIP INFO

This item is available for same day shipping with a 20% expedite fee if:

- You have an account with us and are in good standing
- We receive a written purchase order by 3:00pm eastern standard time
- The "SHIP TODAY" option shows on the configurator
- Configured with CSE Logo
- Maximum quantity is 5 pieces

Not all items or configurations are available for same day shipping. For a list of items that qualify please click the link below:

Same Day Ship Item List

Prices Effective April-11-2025

Part Number:Price: (U.S. FUNDS)

2N-C-1/4NPT-GF-BT - CSE

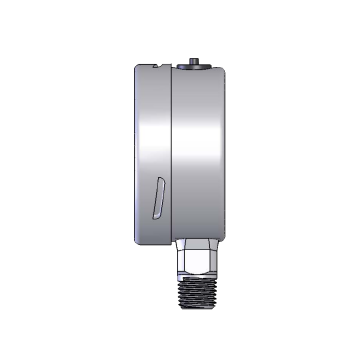

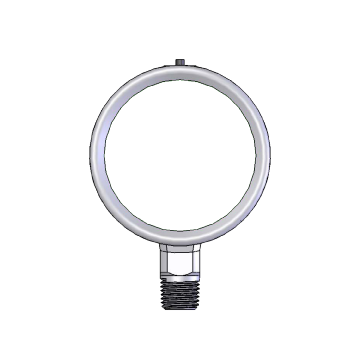

2½" (63mm) Insta-Flow Stainless Steel Pressure Gauge, 0 to 60 PSI, 1/4" NPT Fitting, Glycerin Filled Case, Bottom Mount, Polycarbonate Lens, CSE Logo.

$130.00

Click Here
For Repair
Pricing

Datasheet
As
Configured

Insta-Flow Pressure Gauge Repair

2-1/2" Insta-Flow Pressure Gauge Repair $65.00

4" Insta-Flow Pressure Gauge Repair $90.00

6" Insta-Flow Pressure Gauge Repair $154.00

General Calibration Certificate add $ 48.00

Detailed Calibration Certificate add $ 75.00

Certificate of Conformity add $ 10.00

CSE Insta-Flow Pressure Gauges can be identified by a "2N" or "4N" in the first two letters of the part number. The above prices are a flat rate regardless of what is wrong. However, if any part of the instrument is missing or severely damaged, then it is beyond repair. The gauge sent in will be the gauge that is returned; we do not repair by replacement. You will not be receiving someone else's damaged instrument that has been repaired. CSE does not require RMA's. Simply return the item to us with a Purchase Order in the box. All repairs must be through a CSE authorized distributor. Repairs generally take about one week.

Recalibration Only $96.00

Recalibration with General Calibration Certificate $108.00

Recalibration with Detailed Calibration Certificate $134.00

Change Dial Face Only $ 75.00
(Change Logo and/or Scale Only - Range CANNOT Be Changed)

Clean and Re-Fill Case with Glycerin $54.00

Recalibration with or without certifications can only be completed on an instrument that has not been damaged and is functioning properly. If the gauge is found to be damaged or not functioning for any reason, it must first be repaired, at which time it will automatically be recalibrated. Re-Certification after repair, if requested, is for an additional charge.

Re-filling the case can only be performed on a gauge that has not been damaged. Prior to re-filling, the case will be thoroughly cleaned and then filled with 99.7% USP Glycerin.

SPECIFICATIONS:

Compliance: Nema 4X, IP67
Accuracy: ± 1.6% of FULL Scale
Over-Range Capability: 25% Over Range
Repeatability: ± 0.5% of Full Scale
Linearity: ± 0.5% of Full Scale
Hysteresis: ± 0.5% of Full Scale
Process Temperature Range: -4° to 176°F (-20° to 80°C)
Ambient Operating Limits: 40° to 140°F (-40° to 60°C)
Ambient Storage Limits: -40° to 250°F (-40° to 121°C)
Product Contact Material: 316L Stainless Steel
Bourdon Tube & Socket: 316L Stainless Steel
Case & Lens Ring Material: 304 Stainless Steel
Lens Material: Polycarbonate Lens
Dial Face: Aluminium Printed with UV inks (No stickers)
Re-Zero Adjustment: Optional
Case Fill Media: 99.5% USP Food Grade Glycerin
Approx. Shipping Weight: 2.8 Pounds (1.3 kg)

Click Here for a Dimensioned Drawing
